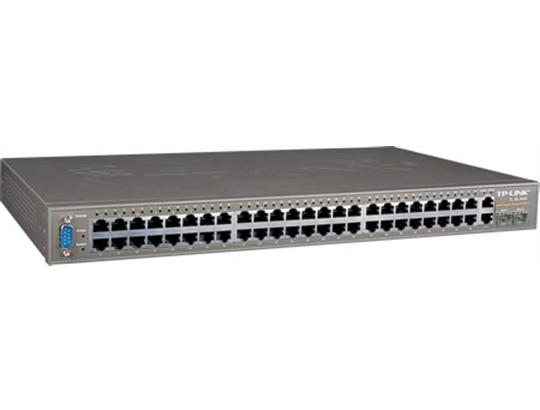

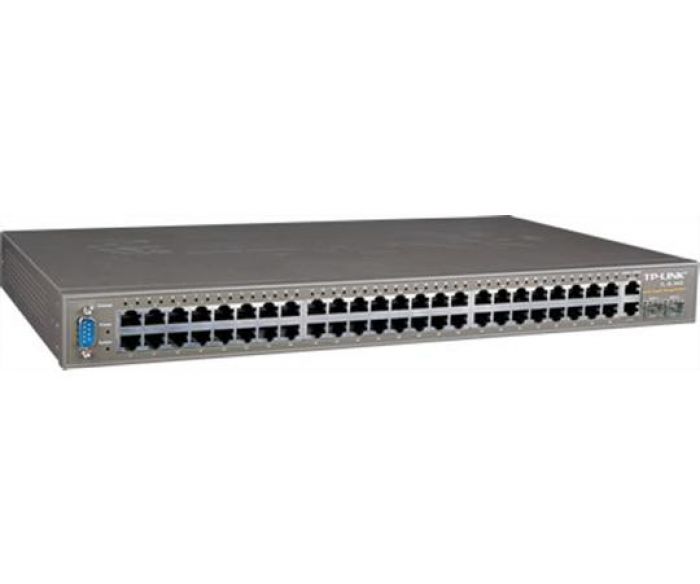

Tp-Link TL-SL3452 JetStream 48-Port 10/100Mbps + 4-Port Gigabit L2 Managed Switch

Tüm "Tp-Link" ürünleri
DONANIM ÖZELLİKLERİ
Standartlar ve ProtokollerIEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,IEEE 802.1x,IEEE 802.1p
Arabirim48 10/100Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 Gigabit SFP Slots
1 Console Port
Ağ Medyası10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
1000BASE-X: MMF, SMF
Fan SayısıFanless
Güç Kaynağı100~240VAC, 50/60Hz
Güç TüketimiMaximum: 20.3W (220V/50Hz)
Boyutlar ( W X D X H )17.32*10.2*1.73 in.(440*260*44 mm)
MontajRack Mountable
PERFORMANS
Bandwidth/Backplane17.6Gbps
Paket Yönlendirme Hızı13.1Mpps
MAC Adres Tablosu8k
Jumbo Frame10240 Bytes
YAZILIM ÖZELLİKLERİ
Quality of ServiceSupport 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
VLANSupports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
Port/ MAC/Protocol-based VLAN
GARP/GVRP
Management VLAN configuration
Erişim Kontrol ListesiL2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Time Range Based
GüvenlikIP-MAC-Port-VID Binding
IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
DoS Defence
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
L2 Switching ÖzellikleriIGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
Port isolation
BPDU filtering/guard
TC/Root protect
Loop back detection
802.3x Flow Control
YönetimWeb-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client,DHCP Snooping,DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
DİĞERLERİ
SertifikaCE, FCC, RoHS
Paket İçeriğiSwitch; Power Cord; Installation Guide;Resource CD; Rackmount Kit; Rubber Feet
Sistem GereksinimleriMicrosoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
OrtamOperating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Özellik Detayları
Marka Tp-Link
Ethernet Port 48 Port
Bağlantı Hızı 10/100 Mbps
Yönetim Yönetilebilir
EAN Kodu 6935364020507
Üretici Kodu TL-SL3452
SKU Kodu HA98686905752
