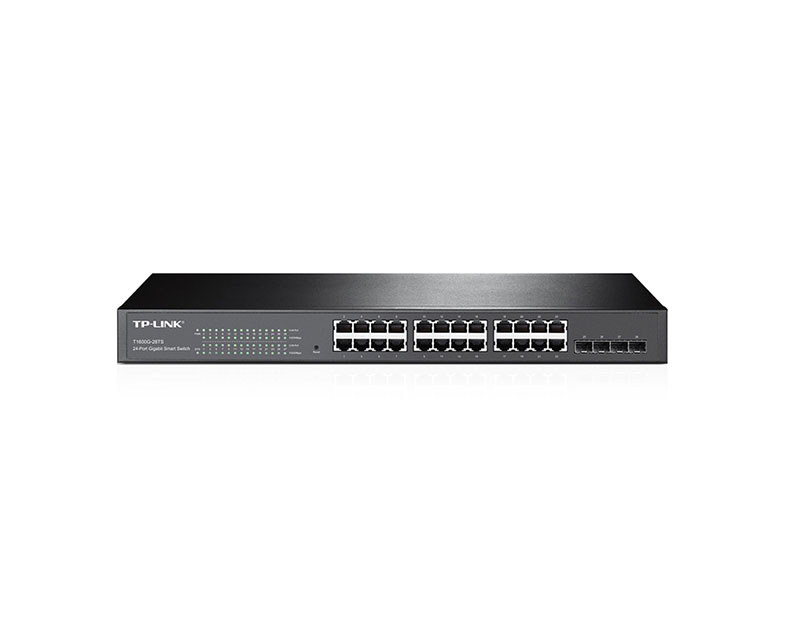

Tp-Link JetStream 24-Port Gigabit Smart Switch T1600G-28TS

DONANIM ÖZELLİKLERİ
Standartlar ve ProtokollerIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE802.3z,
IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Arabirim24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 Gigabit SFP Slots
Ağ Medyası10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
1000BASE-X: MMF, SMF
Fan SayısıFanless
Fiziksel Güvenlik KilidiYes
Güç Kaynağı100~240VAC, 50/60Hz
Boyutlar ( W X D X H )17.3*7.1*1.7 in. (440*180*44 mm)
MontajRack Mountable
Maks. Güç Tüketimi20.4W (220V/50Hz)
Max Heat Dissipation69.6 BTU/h
PERFORMANS
Bandwidth/Backplane56Gbps
Paket Yönlendirme Hızı41.7Mpps
MAC Adres Tablosu16k
Jumbo Frame9216 Bytes
YAZILIM ÖZELLİKLERİ
Quality of ServiceSupport 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
IPv6 QoS*
Voice VLAN
L2 ve L2+ ÖzellikleriStatic Routing
DHCP Relay
DHCP Server
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
LLDP, LLDP-MED
VLANSupports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN
Erişim Kontrol ListesiL2~L4 package filtering
MAC ACL
IP ACL
Combined ACL
IPv6 ACL
GüvenlikAAA
Port Security
DHCP Snooping
IP-MAC-Port Binding
IPv6-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend
IPv6Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 UygulamalarıDHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
YönetimWeb-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image
EEE
DİĞERLERİ
SertifikaCE, FCC, RoHS
Paket İçeriğiT1600G-28TS
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
Sistem GereksinimleriMicrosoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
OrtamOperating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Özellik Detayları
Marka Tp-Link
Ethernet Port 24 port
Bağlantı Hızı 10/100/1000 Mbps
Yönetim Yönetilebilir
EAN Kodu 6935364091972
Üretici Kodu T1600G-28TS(TL-SG2424)
SKU Kodu HA69661477777
